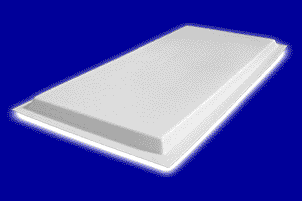

Flanged-Type Drop Diffusers

Features:
• Made with acrylic material.
• Won't go yellow.
• Safe and easy to maintain.
• Widespread light distribution.
• Available in 2x2, 1x4, and 2x4 sizes.

Description:
• Flanged-Type Drop Diffusers are made with premium White Frost Glaze acrylic material in .125 thickness. Rated as one of the most durable and U.V. stable materials in the industry. Provides safe and easy maintenance. Design assures widespread light distribution free of glare.

Applications:
• Banks, households, kicthens

Ordering Information:
• When ordreing or inquireing about this product, it is important to know that the most critical demensions would be the body size of the drop and the overall trim.

HOW TO MEASURE/ORDER

1. Measure the overall trim size ( length and width).
2. Measure the depth of drop.
3. Measure overall body size ( length and width ).
4. Next step material selection.
You have two choices of material to choose from. White Frost Glaze acrylic, or clear acrylic prismatic. The most popular is White
Frost Glaze. Our standard material thickness is .125 .

EXAMPLE Overall trim size:
( length ) 47 3/4" x ( width ) 23 3/4"
Depth of drop: 4"
Overall body size:
( length ) 45" x ( width ) 21"
The body size is anyways smaller then the trim size.
